Allen Bolt

Home / Allen Bolt
Stainless Steel Hex Bolts

Proof Load Tested Stainless Steel Allen Bolts Supplier in India

Allen Bolt Properties

Ready Stock M4 To M42
ISO Standard ISO 4762
International Standard DIN 931, GB 5783, DIN 603, DIN 6923, DIN 912
Raw Material Origin Morocco, SA, Europe, Algeria, United Kingdom, India, South Africa, New Zealand, Australia etc.
MTC EN 10204 / 3.1B
Suitable Environment Machine Tooling & Automotive
Thread Pitch Fine Thread and Coarse Thread
Finish Oxidation, Phosphating, HDG
Threads UNR, Rolled, UNF, UNJ, UNC
Temperature Range −50°C to 400°C
Latest Price To Know About Latest Price List of Allen Bolt Please Contact Us

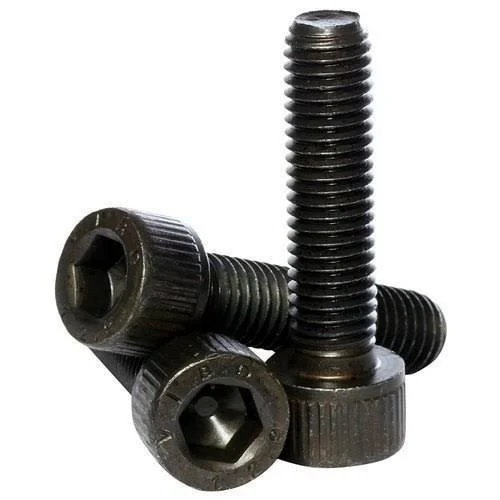

Allen Key Head Bolts

Allen Key Head Bolts

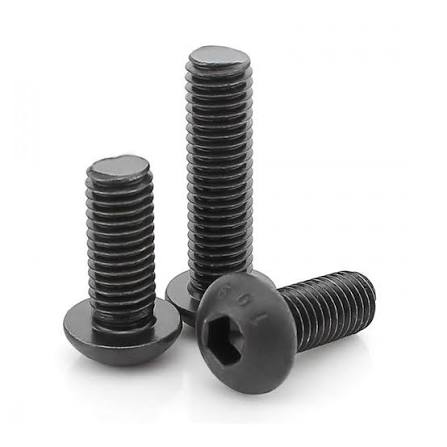

Button Head Allen Bolts

Button Head Allen Bolts

Allen Cap Screws

Allen Cap Screws

Table of Content

Arrow Piping Solutions is a leading manufacturer and supplier of Stainless Steel Allen Bolts, available in multiple sizes, grades, materials and international standards for industrial and engineering applications worldwide.

Allen Cap Bolt Size

  • M4 To M50

Allen Bolt Grade

  • Grade 8.8, 10.9

Allen Key Head Bolts Also Known

  • Allen Screw

Allen Head Set Screw Thread Pitch

  • Coarse
  • Fine

A2-70 Allen Bolt Manufacturing Methods

  • Cold Forging
  • Hot Forging
  • CNC Machined

Allen Screws Material

  • Stainless Steel
  • Carbon Steel
  • Alloy Steel

Manufacturer of Allen Key Head Bolts With Various Threads
For Construction Projects

Button Head Allen Bolts Applications

  • Ship Building
  • Aerospace
  • Engineering
  • Marine Applications
  • General Structural Purposes
  • Bridges
  • Petrochemical Industry
  • Construction

Stockist of Button Head Allen Bolts With M4 to M24 Size Range as per DIN 912 Standard

Allen Key Screw Sizes

Check Allen Bolt Supplier in India who provides Custom Sizes

Sizes for Allen Key in (MM) Suits Thread
14 M24
6.5 Interclamp
12 M20
8 M12
10 M16
6 M10
3 M6
5 M8

Price List of Allen Bolt

Get the Latest Allen Bolt Price Per Kg in India by Contacting Us Allen Bolt Price List

Refer to The Allen Cap Screws Hardness and Tensile Testing Before Buying the Materials

Allen Flat Head Screw Testing Methods

Find Allen Bolt Supplier in India providing various Testing Methods

  • Chemical Analysis – Spectro Analysis
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
  • Micro Test
  • Hardness Test
  • Pitting Resistance Test
  • Dye Penetrant Test (DP Test)
  • Tensile Testing

Types of Allen Bolt

Purchase from Allen Bolt Manufacturer in India supplying various Forms at Best Price.

Allen Flat Head Screw

Allen Flat Head Screw

Allen Wrench Screws

Allen Wrench Screws

Allen Head Set Screw

Allen Head Set Screw

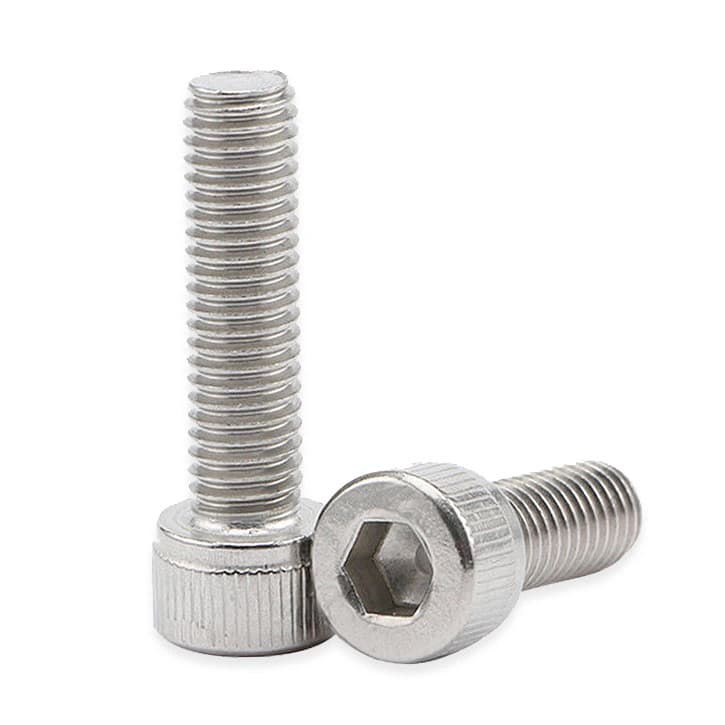

Allen Cap Bolt

Allen Cap Bolt

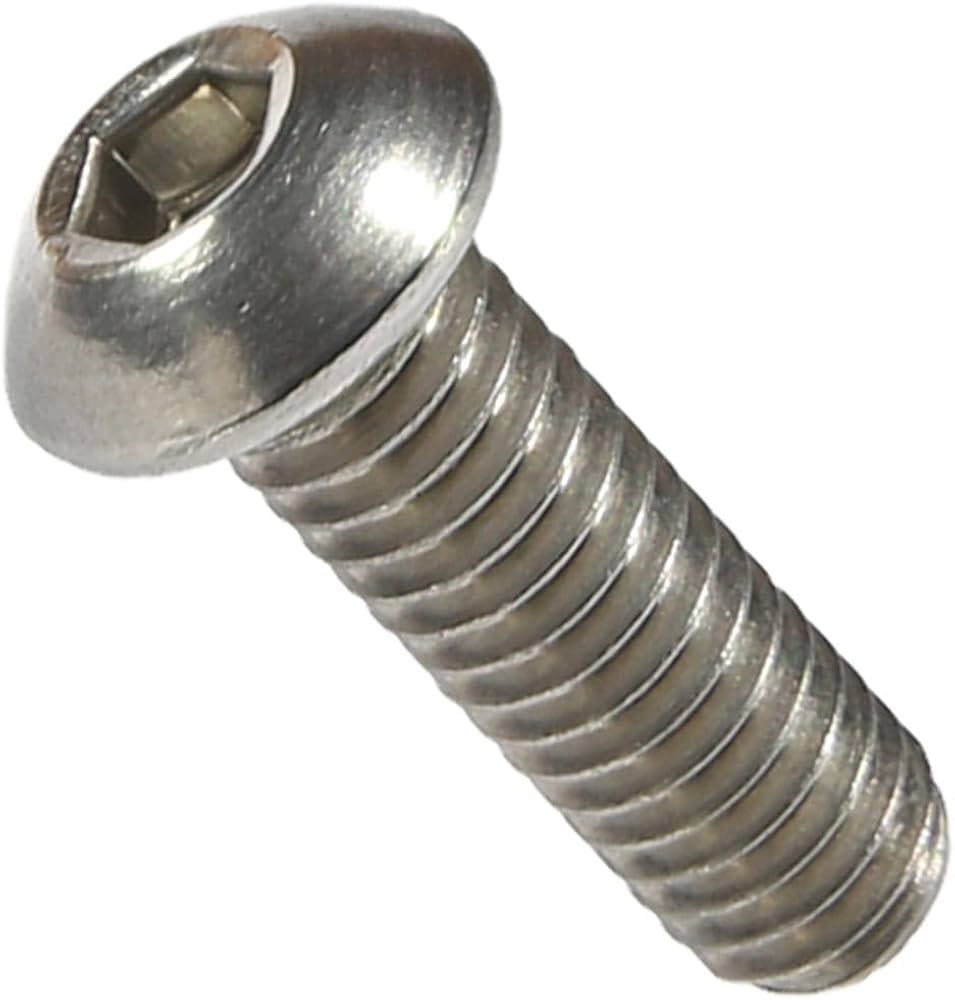

Round Head Allen Bolt

Round Head Allen Bolt

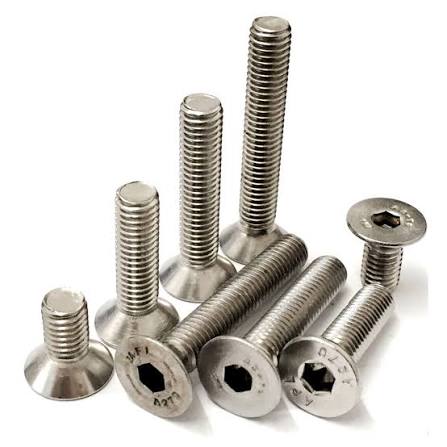

Allen Countersunk Bolt

Allen Countersunk Bolt

Allen Head Bolts Weight Chart

LENGTH \ DIA M5 M2 M3 M6 M4 M8 M12 M10 M16 M14 M36
4 0.0175
6 0.0215 0.071 0.150
10 0.270 0.0295 0.088 0.470 0.180
12 0.295 0.0355 0.096 0.507 0.195 1.09
20 0.401 0.0495 0.136 0.653 0.265 1.34 3.21 2.29
30 0.555 0.186 0.830 0.365 1.69 3.93 2.79 7.78 5.30
40 0.709 1.100 0.465 2.09 4.65 3.29 9.10 6.30
50 0.863 1.320 2.49 5.45 3.93 10.60 7.30
60 1.540 2.89 6.34 4.57 12.20 8.40 91
70 3.30 7.13 5.21 13.80 9.60 99
80 3.70 8.02 5.85 15.40 10.80 107
100 9.80 7.12 18.60 13.20 123

Allen Cap Bolt Torque Chart

Nominal Diameter

(Inches)		 Thread Series for Unified Coarse
Threads Per
(Inches)		 Tightening Torque
K = 0.20 (ft-lbs) K = 0.16 (ft-lbs) K = 0.15 (ft-lbs)
7/16 14 81 65 61
5/8 11 238 191 179
1 1/8 7 1449 1159 1087
7/8 9 682 545 511
5/16 18 29 23 22
1 3/4 5 5609 4487 4207
3/4 10 423 339 317
2 4.5 8432 6745 6324
1 8 1022 818 767
1 1/2 6 3557 2846 2668
1/2 13 124 99 93
1/4 20 14 11 10

Load Carrying Capacity of Socket Head Allen Bolt

Size Grade 12.9 Grade 8.8
M5 1,380 820
M10 5,630 3,370
M6 1,950 1,160
M8 3,550 2,120
M16 15,200 9,100
M12 8,180 4,890
M24 34,200 21,200
M20 23,800 14,700
M30 54,400 33,700

Get Allen Bolt Material Delivery With Mtc 3.1 Report in Following Countries

Italy Germany Denmark Ireland Brazil
Canada USA Spain UK South Africa
Nigeria Poland Mexico Netherlands Singapore
UAE Australia Qatar Saudi Arabia Turkey
